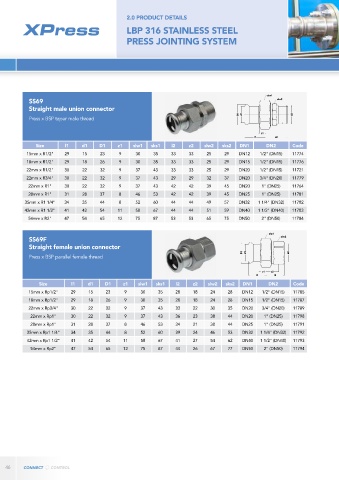

Page 46 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM

SS69
Straight male union connector
Press x BSP taper male thread

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x R1/2" 29 15 23 9 30 35 33 33 25 29 DN12 1/2" (DN15) 11774
18mm x R1/2" 29 18 26 9 30 35 33 33 25 29 DN15 1/2" (DN15) 11776
22mm x R1/2" 30 22 32 9 37 43 33 33 25 29 DN20 1/2" (DN15) 11721
22mm x R3/4" 30 22 32 9 37 43 29 29 32 37 DN20 3/4" (DN20) 11779
22mm x R1" 30 22 32 9 37 43 42 42 39 45 DN20 1" (DN25) 11764
28mm x R1" 31 28 37 8 46 53 42 42 39 45 DN25 1" (DN25) 11781
35mm x R1 1/4" 34 35 44 8 52 60 44 44 49 57 DN32 1 1/4" (DN32) 11782
42mm x R1 1/2" 41 42 54 11 58 67 44 44 51 59 DN40 1 1/2" (DN40) 11783
54mm x R2" 47 54 65 12 75 87 53 53 65 75 DN50 2" (DN50) 11784

SS69F
Straight female union connector

Press x BSP parallel female thread

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x Rp1/2" 29 15 23 9 30 35 28 18 24 28 DN12 1/2" (DN15) 11785
18mm x Rp1/2" 29 18 26 9 30 35 28 18 24 28 DN15 1/2" (DN15) 11787
22mm x Rp3/4" 30 22 32 9 37 43 33 22 30 35 DN20 3/4" (DN20) 11789
22mm x Rp1" 30 22 32 9 37 43 36 23 38 44 DN20 1" (DN25) 11798
28mm x Rp1" 31 28 37 8 46 53 34 21 38 44 DN25 1" (DN25) 11791
35mm x Rp1 1/4" 34 35 44 8 52 60 39 24 46 53 DN32 1 1/4" (DN32) 11792
42mm x Rp1 1/2" 41 42 54 11 58 67 41 27 54 62 DN40 1 1/2" (DN40) 11793
54mm x Rp2" 47 54 65 12 75 87 44 26 67 77 DN50 2" (DN50) 11794
