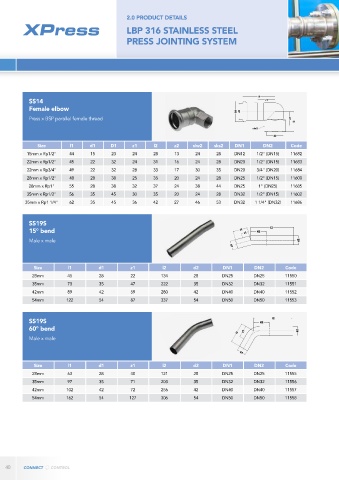

Page 40 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 40
2.0 PRODUCT DETAILS
LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM
SS14
Female elbow
Press x BSP parallel female thread
Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x Rp1/2" 44 15 23 24 28 13 24 28 DN12 1/2" (DN15) 11682
22mm x Rp1/2" 45 22 32 24 31 16 24 28 DN20 1/2" (DN15) 11683
22mm x Rp3/4" 49 22 32 28 33 17 30 35 DN20 3/4" (DN20) 11684
28mm x Rp1/2" 48 28 38 25 35 20 24 28 DN25 1/2" (DN15) 11600
28mm x Rp1" 55 28 38 32 37 24 38 44 DN25 1" (DN25) 11685
35mm x Rp1/2" 56 35 45 30 35 20 24 28 DN32 1/2" (DN15) 11602
35mm x Rp1 1/4" 62 35 45 36 42 27 46 53 DN32 1 1/4" (DN32) 11686
SS19S
15° bend
Male x male
Size l1 d1 z1 l2 d2 DN1 DN2 Code
28mm 45 28 22 134 28 DN25 DN25 11550
35mm 73 35 47 222 35 DN32 DN32 11551
42mm 89 42 59 280 42 DN40 DN40 11552
54mm 122 54 87 337 54 DN50 DN50 11553
SS19S
60° bend
Male x male
Size l1 d1 z1 l2 d2 DN1 DN2 Code
28mm 63 28 40 121 28 DN25 DN25 11555
35mm 97 35 71 203 35 DN32 DN32 11556
42mm 102 42 72 256 42 DN40 DN40 11557
54mm 162 54 127 306 54 DN50 DN50 11558
