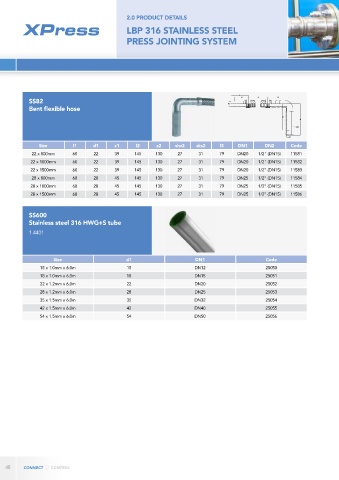

Page 48 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 48
2.0 PRODUCT DETAILS
LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM
SS82
Bent flexible hose
Size l1 d1 z1 l2 z2 slw2 sks2 l3 DN1 DN2 Code
22 x 800mm 60 22 39 145 130 27 31 79 DN20 1/2" (DN15) 11581
22 x 1000mm 60 22 39 145 130 27 31 79 DN20 1/2" (DN15) 11582
22 x 1500mm 60 22 39 145 130 27 31 79 DN20 1/2" (DN15) 11583
28 x 800mm 68 28 45 145 130 27 31 79 DN25 1/2" (DN15) 11584
28 x 1000mm 68 28 45 145 130 27 31 79 DN25 1/2" (DN15) 11585
28 x 1500mm 68 28 45 145 130 27 31 79 DN25 1/2" (DN15) 11586
SS600
Stainless steel 316 HWG+S tube
1.4401
Size d1 DN1 Code
15 x 1.0mm x 6.0m 15 DN12 25050
18 x 1.0mm x 6.0m 18 DN15 25051
22 x 1.2mm x 6.0m 22 DN20 25052
28 x 1.2mm x 6.0m 28 DN25 25053
35 x 1.5mm x 6.0m 35 DN32 25054
42 x 1.5mm x 6.0m 42 DN40 25055
54 x 1.5mm x 6.0m 54 DN50 25056
