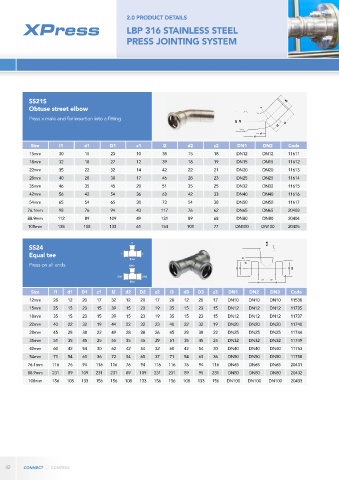

2.0 PRODUCT DETAILS

LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM

SS21S
Obtuse street elbow
Press x male end for insertion into a fitting

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15mm 30 15 23 10 38 15 18 DN12 DN12 11611
18mm 32 18 27 12 39 18 19 DN15 DN15 11612
22mm 35 22 32 14 42 22 21 DN20 DN20 11613
28mm 40 28 38 17 46 28 23 DN25 DN25 11614
35mm 46 35 45 20 51 35 25 DN32 DN32 11615
42mm 56 42 54 36 63 42 33 DN40 DN40 11616
54mm 65 54 65 30 73 54 38 DN50 DN50 11617
76.1mm 98 76 94 43 117 76 62 DN65 DN65 20403
88.9mm 112 89 109 49 131 89 68 DN80 DN80 20404
108mm 138 108 133 61 154 108 77 DN100 DN100 20405

3
SS24
Equal tee 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
12mm 28 12 20 17 32 12 20 17 28 12 20 17 DN10 DN10 DN10 11538
15mm 35 15 23 15 39 15 23 19 35 15 23 15 DN12 DN12 DN12 11735
18mm 35 15 23 15 39 15 23 19 35 15 23 15 DN12 DN12 DN12 11737
22mm 40 22 32 19 44 22 32 23 40 22 32 19 DN20 DN20 DN20 11740
28mm 45 28 38 22 49 28 38 26 45 28 38 22 DN25 DN25 DN25 11744
35mm 51 35 45 25 55 35 45 29 51 35 45 25 DN32 DN32 DN32 11749
42mm 60 42 54 30 62 42 54 32 60 42 54 30 DN40 DN40 DN40 11753
54mm 71 54 65 36 72 54 65 37 71 54 65 36 DN50 DN50 DN50 11758
76.1mm 116 76 94 116 116 76 94 116 116 76 94 116 DN65 DN65 DN65 20431
88.9mm 231 89 109 231 231 89 109 231 231 89 95 231 DN80 DN80 DN80 20432
108mm 156 108 133 156 156 108 133 156 156 108 133 156 DN100 DN100 DN100 20433
