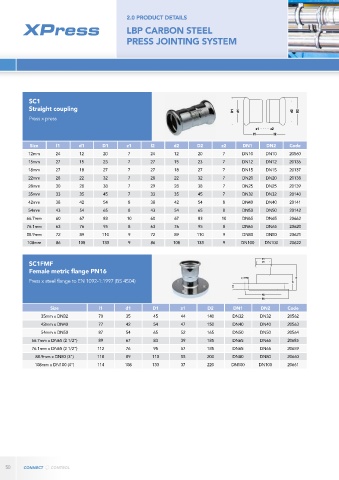

Page 50 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 50
2.0 PRODUCT DETAILS
LBP CARBON STEEL
PRESS JOINTING SYSTEM
SC1
Straight coupling
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 24 12 20 7 24 12 20 7 DN10 DN10 20560
15mm 27 15 23 7 27 15 23 7 DN12 DN12 20136
18mm 27 18 27 7 27 18 27 7 DN15 DN15 20137
22mm 28 22 32 7 28 22 32 7 DN20 DN20 20138
28mm 30 28 38 7 29 28 38 7 DN25 DN25 20139
35mm 33 35 45 7 33 35 45 7 DN32 DN32 20140
42mm 38 42 54 8 38 42 54 8 DN40 DN40 20141
54mm 43 54 65 8 43 54 65 8 DN50 DN50 20142
66.7mm 60 67 83 10 60 67 83 10 DN65 DN65 20662
76.1mm 63 76 95 8 63 76 95 8 DN65 DN65 20620
88.9mm 72 89 110 9 72 89 110 9 DN80 DN80 20621
108mm 86 108 133 9 86 108 133 9 DN100 DN100 20622
SC1FMF
Female metric flange PN16
Press x steel flange to EN 1092-1:1997 (BS 4504)
Size l1 d1 D1 z1 D2 DN1 DN2 Code
35mm x DN32 70 35 45 44 140 DN32 DN32 20562
42mm x DN40 77 42 54 47 150 DN40 DN40 20563
54mm x DN50 87 54 65 52 165 DN50 DN50 20564
66.7mm x DN65 (2 1/2") 89 67 83 39 185 DN65 DN65 20685
76.1mm x DN65 (2 1/2") 112 76 95 57 185 DN65 DN65 20659
88.9mm x DN80 (3") 118 89 110 55 200 DN80 DN80 20660
108mm x DN100 (4") 114 108 133 37 220 DN100 DN100 20661
50
