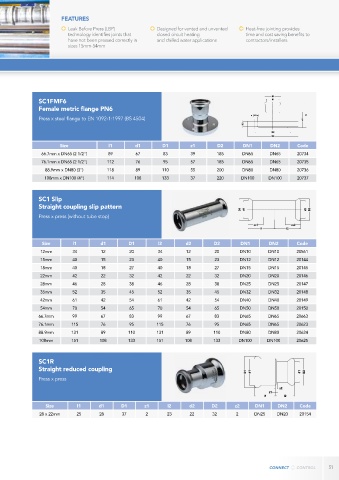

Page 51 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 51
FEATURES
Leak Before Press (LBP) Designed for vented and unvented Heat-free jointing provides
technology identifies joints that closed circuit heating time and cost saving benefits to
have not been pressed correctly in and chilled water applications contractors/installers
sizes 15mm-54mm
SC1FMF6
Female metric flange PN6
Press x steel flange to EN 1092-1:1997 (BS 4504)
Size l1 d1 D1 z1 D2 DN1 DN2 Code
66.7mm x DN65 (2 1/2") 89 67 83 39 185 DN65 DN65 20734
76.1mm x DN65 (2 1/2") 112 76 95 57 185 DN65 DN65 20735
88.9mm x DN80 (3") 118 89 110 55 200 DN80 DN80 20736
108mm x DN100 (4") 114 108 133 37 220 DN100 DN100 20737
SC1 Slip
Straight coupling slip pattern
Press x press (without tube stop)
Size l1 d1 D1 l2 d2 D2 DN1 DN2 Code
12mm 34 12 20 34 12 20 DN10 DN10 20561
15mm 40 15 23 40 15 23 DN12 DN12 20144
18mm 40 18 27 40 18 27 DN15 DN15 20145
22mm 42 22 32 42 22 32 DN20 DN20 20146
28mm 46 28 38 46 28 38 DN25 DN25 20147
35mm 52 35 45 52 35 45 DN32 DN32 20148
42mm 61 42 54 61 42 54 DN40 DN40 20149
54mm 70 54 65 70 54 65 DN50 DN50 20150
66.7mm 99 67 83 99 67 83 DN65 DN65 20663
76.1mm 115 76 95 115 76 95 DN65 DN65 20623
88.9mm 131 89 110 131 89 110 DN80 DN80 20624
108mm 151 108 133 151 108 133 DN100 DN100 20625
SC1R
Straight reduced coupling
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
28 x 22mm 25 28 37 2 23 22 32 2 DN25 DN20 20154
51
