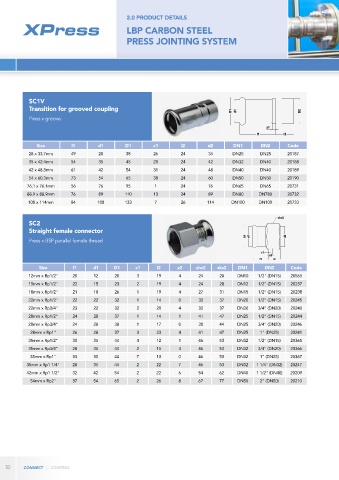

Page 52 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 52
2.0 PRODUCT DETAILS
LBP CARBON STEEL
PRESS JOINTING SYSTEM
SC1V
Transition for grooved coupling
Press x groove
Size l1 d1 D1 z1 l2 d2 DN1 DN2 Code
28 x 33.7mm 49 28 38 26 24 34 DN25 DN25 20187
35 x 42.4mm 54 35 45 28 24 42 DN32 DN40 20188
42 x 48.3mm 61 42 54 31 24 48 DN40 DN40 20189
54 x 60.3mm 73 54 65 38 24 60 DN50 DN50 20190
76.1 x 76.1mm 56 76 95 1 24 76 DN65 DN65 20731
88.9 x 88.9mm 76 89 110 13 24 89 DN80 DN780 20732
108 x 114mm 84 108 133 7 26 114 DN100 DN100 20733
SC2
Straight female connector
Press x BSP parallel female thread
Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x Rp1/2" 20 12 20 3 19 4 24 28 DN10 1/2" (DN15) 20565
15mm x Rp1/2" 22 15 23 2 19 4 24 28 DN12 1/2" (DN15) 20237
18mm x Rp1/2" 21 18 26 1 19 4 27 31 DN15 1/2" (DN15) 20238
22mm x Rp1/2" 22 22 32 1 14 0 32 37 DN20 1/2" (DN15) 20245
22mm x Rp3/4" 23 22 32 2 20 4 32 37 DN20 3/4" (DN20) 20240
28mm x Rp1/2" 24 28 37 1 14 1 41 47 DN25 1/2" (DN15) 20244
28mm x Rp3/4" 24 28 38 1 17 0 38 44 DN25 3/4" (DN20) 20246
28mm x Rp1" 26 28 37 3 23 4 41 47 DN25 1" (DN25) 20241
35mm x Rp1/2" 30 35 44 4 12 1 46 53 DN32 1/2" (DN15) 20365
35mm x Rp3/4" 28 35 44 2 15 3 46 53 DN32 3/4" (DN20) 20366
35mm x Rp1" 33 35 44 7 13 0 46 53 DN32 1" (DN25) 20367
35mm x Rp1 1/4" 28 35 44 2 22 7 46 53 DN32 1 1/4" (DN32) 20247
42mm x Rp1 1/2" 32 42 54 2 22 6 54 62 DN40 1 1/2" (DN40) 20209
54mm x Rp2" 37 54 65 2 26 8 67 77 DN50 2" (DN50) 20210
