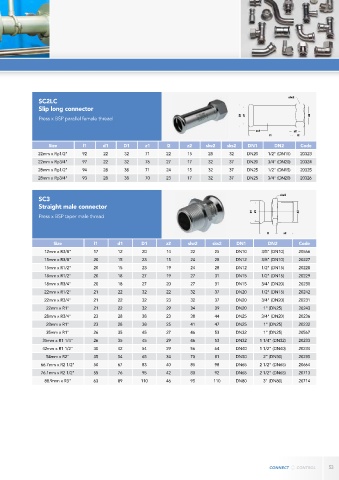

Page 53 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

SC2LC
Slip long connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
22mm x Rp1/2" 92 22 32 71 22 15 28 32 DN20 1/2" (DN15) 20323
22mm x Rp3/4" 97 22 32 76 27 17 32 37 DN20 3/4" (DN20) 20324
28mm x Rp1/2" 94 28 38 71 24 15 32 37 DN25 1/2" (DN15) 20325
28mm x Rp3/4" 93 28 38 70 23 17 32 37 DN25 3/4" (DN20) 20326

SC3
Straight male connector

Press x BSP taper male thread

Size l1 d1 D1 z2 slw2 sks2 DN1 DN2 Code
12mm x R3/8" 17 12 20 14 22 25 DN10 3/8" (DN10) 20566
15mm x R3/8" 20 15 23 15 24 28 DN12 3/8" (DN10) 20227
15mm x R1/2" 20 15 23 19 24 28 DN12 1/2" (DN15) 20228
18mm x R1/2" 20 18 27 19 27 31 DN15 1/2" (DN15) 20229
18mm x R3/4" 20 18 27 20 27 31 DN15 3/4" (DN20) 20230
22mm x R1/2" 21 22 32 22 32 37 DN20 1/2" (DN15) 20242
22mm x R3/4" 21 22 32 23 32 37 DN20 3/4" (DN20) 20231
22mm x R1" 21 22 32 29 34 39 DN20 1" (DN25) 20243
28mm x R3/4" 23 28 38 23 38 44 DN25 3/4" (DN20) 20236
28mm x R1" 23 28 38 25 41 47 DN25 1" (DN25) 20232
35mm x R1" 26 35 45 27 46 53 DN32 1" (DN25) 20567
35mm x R1 1/4" 26 35 45 29 46 53 DN32 1 1/4" (DN32) 20233
42mm x R1 1/2" 30 42 54 29 56 64 DN40 1 1/2" (DN40) 20234
54mm x R2" 35 54 65 34 70 81 DN50 2" (DN50) 20235
66.7mm x R2 1/2" 50 67 83 40 85 98 DN65 2 1/2" (DN65) 20664
76.1mm x R2 1/2" 55 76 95 42 80 92 DN65 2 1/2" (DN65) 20713
88.9mm x R3" 63 89 110 46 95 110 DN80 3" (DN80) 20714

53
