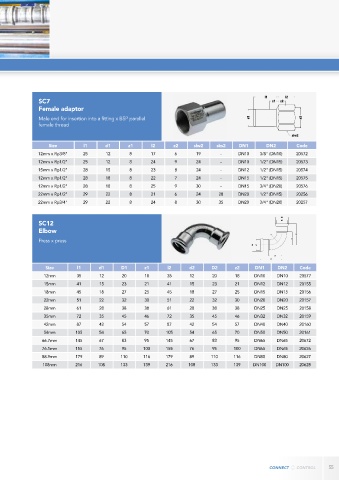

Page 55 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

SC7
Female adaptor
Male end for insertion into a fitting x BSP parallel
female thread

Size l1 d1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x Rp3/8" 25 12 8 17 6 19 - DN10 3/8" (DN10) 20572
12mm x Rp1/2" 25 12 8 24 9 24 - DN10 1/2" (DN15) 20573
15mm x Rp1/2" 28 15 8 23 8 24 - DN12 1/2" (DN15) 20574
12mm x Rp1/2" 28 18 8 22 7 24 - DN15 1/2" (DN15) 20575
12mm x Rp1/2" 28 18 8 25 9 30 - DN15 3/4" (DN20) 20576
22mm x Rp1/2" 29 22 8 21 6 24 28 DN20 1/2" (DN15) 20256
22mm x Rp3/4" 29 22 8 24 8 30 35 DN20 3/4" (DN20) 20257

SC12
Elbow
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 35 12 20 18 35 12 20 18 DN10 DN10 20577
15mm 41 15 23 21 41 15 23 21 DN12 DN12 20155
18mm 45 18 27 25 45 18 27 25 DN15 DN15 20156
22mm 51 22 32 30 51 22 32 30 DN20 DN20 20157
28mm 61 28 38 38 61 28 38 38 DN25 DN25 20158
35mm 72 35 45 46 72 35 45 46 DN32 DN32 20159
42mm 87 42 54 57 87 42 54 57 DN40 DN40 20160
54mm 105 54 65 70 105 54 65 70 DN50 DN50 20161
66.7mm 145 67 83 95 145 67 83 95 DN65 DN65 20672
76.1mm 155 76 95 100 155 76 95 100 DN65 DN65 20626
88.9mm 179 89 110 116 179 89 110 116 DN80 DN80 20627
108mm 216 108 133 139 216 108 133 139 DN100 DN100 20628

55
