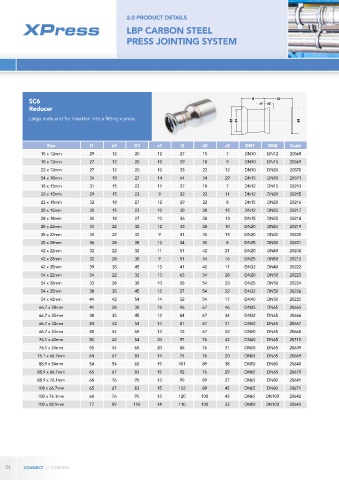

Page 54 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP CARBON STEEL
PRESS JOINTING SYSTEM

SC6
Reducer
Large male end for insertion into a fitting x press

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15 x 12mm 29 12 20 12 27 15 7 DN10 DN12 20568
18 x 12mm 27 12 20 10 29 18 9 DN10 DN15 20569
22 x 12mm 27 12 20 10 33 22 12 DN10 DN20 20570
54 x 18mm 34 18 27 14 64 54 29 DN15 DN50 20571
18 x 15mm 31 15 23 11 27 18 7 DN12 DN15 20213
22 x 15mm 29 15 23 9 32 22 11 DN12 DN20 20215
22 x 18mm 32 18 27 12 29 22 8 DN15 DN20 20216
28 x 15mm 30 15 23 10 38 28 15 DN12 DN25 20217
28 x 18mm 30 18 27 10 36 28 13 DN15 DN25 20218
28 x 22mm 33 22 32 12 33 28 10 DN20 DN25 20219
35 x 22mm 30 22 32 9 41 35 15 DN20 DN32 20220
35 x 28mm 36 28 38 13 34 35 8 DN25 DN32 20221
42 x 22mm 32 22 32 11 51 42 21 DN20 DN40 20248
42 x 28mm 32 28 38 9 51 54 16 DN25 DN50 20212
42 x 35mm 39 35 45 13 41 42 11 DN32 DN40 20222
54 x 22mm 34 22 32 13 63 54 28 DN20 DN50 20223
54 x 28mm 33 28 38 10 58 54 23 DN25 DN50 20224
54 x 35mm 38 35 45 12 57 54 22 DN32 DN50 20226
54 x 42mm 44 42 54 14 52 54 17 DN40 DN50 20225
66.7 x 28mm 41 28 38 18 96 67 46 DN25 DN65 20665
66.7 x 35mm 38 35 45 12 84 67 34 DN32 DN65 20666
66.7 x 42mm 44 42 54 14 81 67 31 DN40 DN65 20667
66.7 x 54mm 48 54 65 13 72 67 22 DN50 DN65 20668
76.1 x 42mm 50 42 54 20 97 76 42 DN40 DN65 20715
76.1 x 54mm 55 54 65 20 86 76 31 DN50 DN65 20639
76.1 x 66.7mm 64 67 83 14 75 76 20 DN65 DN65 20669
88.9 x 54mm 54 54 65 19 101 89 38 DN50 DN80 20640
88.9 x 66.7mm 65 67 83 15 92 76 29 DN65 DN65 20670
88.9 x 76.1mm 68 76 95 13 90 89 27 DN65 DN80 20641
108 x 66.7mm 65 67 83 15 122 89 45 DN65 DN80 20671
108 x 76.1mm 68 76 95 13 120 108 43 DN65 DN100 20642
108 x 88.9mm 77 89 110 14 110 108 33 DN80 DN100 20643
