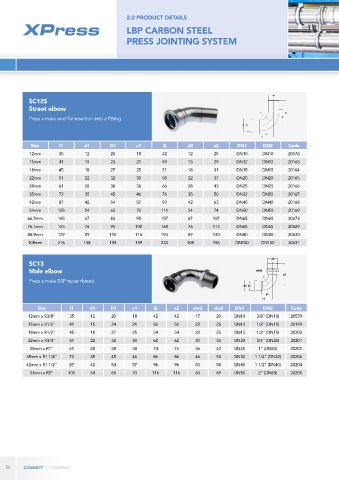

Page 56 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP CARBON STEEL
PRESS JOINTING SYSTEM

SC12S
Street elbow
Press x male end for insertion into a fitting

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
12mm 35 12 20 18 42 12 25 DN10 DN10 20578
15mm 41 15 23 21 49 15 29 DN12 DN12 20163
18mm 45 18 27 25 51 18 31 DN15 DN15 20164
22mm 51 22 32 30 58 22 37 DN20 DN20 20165
28mm 61 28 38 38 66 28 43 DN25 DN25 20166
35mm 72 35 45 46 76 35 50 DN32 DN32 20167
42mm 87 42 54 57 93 42 63 DN40 DN40 20168
54mm 105 54 65 70 111 54 74 DN50 DN50 20169
66.7mm 145 67 83 95 157 67 107 DN65 DN65 20673
76.1mm 155 76 95 100 168 76 113 DN65 DN65 20629
88.9mm 179 89 110 116 193 89 130 DN80 DN80 20630
108mm 216 108 133 139 233 108 156 DN100 DN100 20631

SC13
Male elbow
Press x male BSP taper thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x R3/8" 35 12 20 18 42 42 17 20 DN10 3/8" (DN10) 20579
15mm x R1/2" 41 15 24 21 50 50 22 25 DN12 1/2" (DN15) 20199
18mm x R1/2" 45 18 27 25 54 54 22 25 DN15 1/2" (DN15) 20200
22mm x R3/4" 51 22 32 30 62 62 30 35 DN20 3/4" (DN20) 20201
28mm x R1" 61 28 38 38 74 74 36 42 DN25 1" (DN25) 20202
35mm x R1 1/4" 72 35 45 46 86 86 46 53 DN32 1 1/4" (DN32) 20206
42mm x R1 1/2" 87 42 54 57 96 96 50 58 DN40 1 1/2" (DN40) 20204
54mm x R2" 105 54 65 70 116 116 60 69 DN50 2" (DN50) 20205
