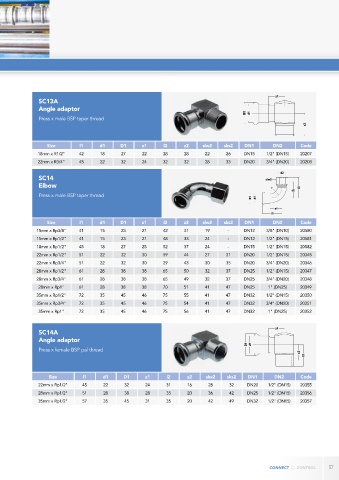

Page 57 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

SC13A
Angle adaptor
Press x male BSP taper thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
18mm x R1/2" 42 18 27 22 28 28 22 26 DN15 1/2" (DN15) 20207
22mm x R3/4" 45 22 32 24 32 32 28 33 DN20 3/4" (DN20) 20208

SC14
Elbow
Press x male BSP taper thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x Rp3/8" 41 15 23 21 42 31 19 - DN12 3/8" (DN10) 20580
15mm x Rp1/2" 41 15 23 21 48 33 24 - DN12 1/2" (DN15) 20581
18mm x Rp1/2" 45 18 27 25 52 37 24 - DN15 1/2" (DN15) 20582
22mm x Rp1/2" 51 22 32 30 59 44 27 31 DN20 1/2" (DN15) 20345
22mm x Rp3/4" 51 22 32 30 29 43 30 35 DN20 3/4" (DN20) 20346
28mm x Rp1/2" 61 28 38 38 65 50 32 37 DN25 1/2" (DN15) 20347
28mm x Rp3/4" 61 28 38 38 65 49 32 37 DN25 3/4" (DN20) 20348
28mm x Rp1" 61 28 38 38 70 51 41 47 DN25 1" (DN25) 20349
35mm x Rp1/2" 72 35 45 46 75 55 41 47 DN32 1/2" (DN15) 20350
35mm x Rp3/4" 72 35 45 46 75 54 41 47 DN32 3/4" (DN20) 20351
35mm x Rp1" 72 35 45 46 75 56 41 47 DN32 1" (DN25) 20352

SC14A
Angle adaptor
Press x female BSP pal thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
22mm x Rp1/2" 45 22 32 24 31 16 28 32 DN20 1/2" (DN15) 20355
28mm x Rp1/2" 51 28 38 28 35 20 36 42 DN25 1/2" (DN15) 20356
35mm x Rp1/2" 57 35 45 31 35 20 42 49 DN32 1/2" (DN15) 20357

57
