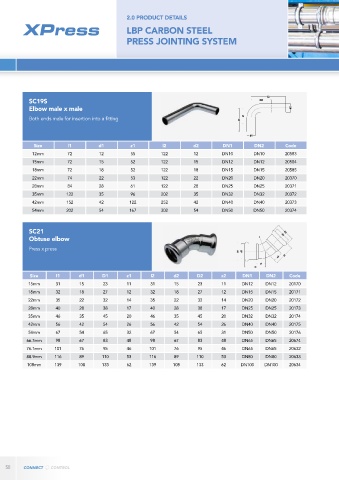

Page 58 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 58
2.0 PRODUCT DETAILS
LBP CARBON STEEL
PRESS JOINTING SYSTEM
SC19S
Elbow male x male
Both ends male for insertion into a fitting
Size l1 d1 z1 l2 d2 DN1 DN2 Code
12mm 72 12 55 122 12 DN10 DN10 20583
15mm 72 15 52 122 15 DN12 DN12 20584
18mm 72 18 52 122 18 DN15 DN15 20585
22mm 74 22 53 122 22 DN20 DN20 20370
28mm 84 28 61 122 28 DN25 DN25 20371
35mm 122 35 96 202 35 DN32 DN32 20372
42mm 152 42 122 252 42 DN40 DN40 20373
54mm 202 54 167 302 54 DN50 DN50 20374
SC21
Obtuse elbow
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15mm 31 15 23 11 31 15 23 11 DN12 DN12 20170
18mm 32 18 27 12 32 18 27 12 DN15 DN15 20171
22mm 35 22 32 14 35 22 32 14 DN20 DN20 20172
28mm 40 28 38 17 40 28 38 17 DN25 DN25 20173
35mm 46 35 45 20 46 35 45 20 DN32 DN32 20174
42mm 56 42 54 26 56 42 54 26 DN40 DN40 20175
54mm 67 54 65 32 67 54 65 31 DN50 DN50 20176
66.7mm 98 67 83 48 98 67 83 48 DN65 DN65 20674
76.1mm 101 76 95 46 101 76 95 46 DN65 DN65 20632
88.9mm 116 89 110 53 116 89 110 53 DN80 DN80 20633
108mm 139 108 133 62 139 108 133 62 DN100 DN100 20634
58
