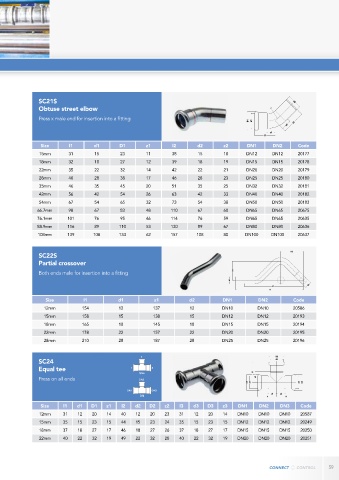

Page 59 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

SC21S
Obtuse street elbow
Press x male end for insertion into a fitting

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15mm 31 15 23 11 38 15 18 DN12 DN12 20177
18mm 32 18 27 12 39 18 19 DN15 DN15 20178
22mm 35 22 32 14 42 22 21 DN20 DN20 20179
28mm 40 28 38 17 46 28 23 DN25 DN25 20180
35mm 46 35 45 20 51 35 25 DN32 DN32 20181
42mm 56 42 54 26 63 42 33 DN40 DN40 20182
54mm 67 54 65 32 73 54 38 DN50 DN50 20183
66.7mm 98 67 83 48 110 67 60 DN65 DN65 20675
76.1mm 101 76 95 46 114 76 59 DN65 DN65 20635
88.9mm 116 89 110 53 130 89 67 DN80 DN80 20636
108mm 139 108 133 62 157 108 80 DN100 DN100 20637

SC22S
Partial crossover
Both ends male for insertion into a fitting

Size l1 d1 z1 d2 DN1 DN2 Code
12mm 154 12 137 12 DN10 DN10 20586
15mm 158 15 138 15 DN12 DN12 20193
18mm 165 18 145 18 DN15 DN15 20194
22mm 178 22 157 22 DN20 DN20 20195
28mm 210 28 187 28 DN25 DN25 20196

3
SC24
Equal tee 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
12mm 31 12 20 14 40 12 20 23 31 12 20 14 DN10 DN10 DN10 20587
15mm 35 15 23 15 44 15 23 24 35 15 23 15 DN12 DN12 DN12 20249
18mm 37 18 27 17 46 18 27 26 37 18 27 17 DN15 DN15 DN15 20250
22mm 40 22 32 19 49 22 32 28 40 22 32 19 DN20 DN20 DN20 20251

59
