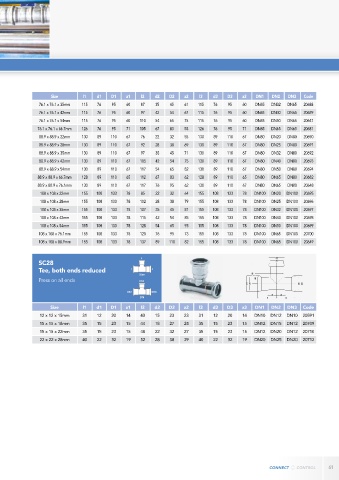

Page 61 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
76.1 x 76.1 x 35mm 115 76 95 60 87 35 45 61 115 76 95 60 DN65 DN32 DN65 20688
76.1 x 76.1 x 42mm 115 76 95 60 97 42 54 67 115 76 95 60 DN65 DN40 DN65 20689
76.1 x 76.1 x 54mm 115 76 95 60 110 54 65 75 115 76 95 60 DN65 DN50 DN65 20647
76.1 x 76.1 x 66.7mm 126 76 95 71 105 67 83 55 126 76 95 71 DN65 DN65 DN65 20681
88.9 x 88.9 x 22mm 130 89 110 67 76 22 32 55 130 89 110 67 DN80 DN20 DN80 20690
88.9 x 88.9 x 28mm 130 89 110 67 92 28 38 69 130 89 110 67 DN80 DN25 DN80 20691
88.9 x 88.9 x 35mm 130 89 110 67 97 35 45 71 130 89 110 67 DN80 DN32 DN80 20692
88.9 x 88.9 x 42mm 130 89 110 67 105 42 54 75 130 89 110 67 DN80 DN40 DN80 20693
88.9 x 88.9 x 54mm 130 89 110 67 117 54 65 82 130 89 110 67 DN80 DN50 DN80 20694
88.9 x 88.9 x 66.7mm 128 89 110 65 112 67 83 62 128 89 110 65 DN80 DN65 DN80 20682
88.9 x 88.9 x 76.1mm 130 89 110 67 117 76 95 62 130 89 110 67 DN80 DN65 DN80 20648
108 x 108 x 22mm 155 108 133 78 85 22 32 64 155 108 133 78 DN100 DN20 DN100 20695
108 x 108 x 28mm 155 108 133 78 102 28 38 79 155 108 133 78 DN100 DN25 DN100 20696
108 x 108 x 35mm 155 108 133 78 107 35 45 81 155 108 133 78 DN100 DN32 DN100 20697
108 x 108 x 42mm 155 108 133 78 115 42 54 85 155 108 133 78 DN100 DN40 DN100 20698
108 x 108 x 54mm 155 108 133 78 128 54 65 93 155 108 133 78 DN100 DN50 DN100 20699
108 x 108 x 76.1mm 155 108 133 78 128 76 95 73 155 108 133 78 DN100 DN65 DN100 20700
108 x 108 x 88.9mm 155 108 133 78 137 89 110 82 155 108 133 78 DN100 DN65 DN100 20649

3
SC28
Tee, both ends reduced 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
12 x 12 x 15mm 31 12 20 14 43 15 23 23 31 12 20 14 DN10 DN12 DN10 20591
15 x 15 x 18mm 35 15 23 15 44 18 27 24 35 15 23 15 DN12 DN15 DN12 20709
15 x 15 x 22mm 35 15 23 15 48 22 32 27 35 15 23 15 DN12 DN20 DN12 20710
22 x 22 x 28mm 40 22 32 19 52 28 38 29 40 22 32 19 DN20 DN25 DN20 20712

61
