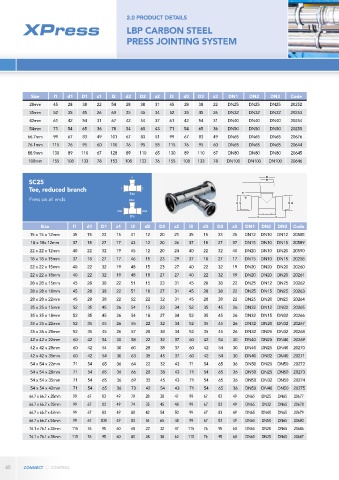

Page 60 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP CARBON STEEL
PRESS JOINTING SYSTEM

Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
28mm 45 28 38 22 54 28 38 31 45 28 38 22 DN25 DN25 DN25 20252
35mm 52 35 45 26 60 35 45 34 52 35 45 26 DN32 DN32 DN32 20253
42mm 61 42 54 31 67 42 54 37 61 42 54 31 DN40 DN40 DN40 20254
54mm 71 54 65 36 78 54 65 43 71 54 65 36 DN50 DN50 DN50 20255
66.7mm 99 67 83 49 101 67 83 51 99 67 83 49 DN65 DN65 DN65 20676
76.1mm 115 76 95 60 110 76 95 55 115 76 95 60 DN65 DN65 DN65 20644
88.9mm 130 89 110 67 128 89 110 65 130 89 110 67 DN80 DN80 DN80 20645
108mm 155 108 133 78 153 108 133 76 155 108 133 78 DN100 DN100 DN100 20646

3
SC25
Tee, reduced branch 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 15 x 12mm 35 15 23 15 41 12 20 21 35 15 23 35 DN12 DN10 DN12 20588
18 x 18x 12mm 37 18 27 17 43 12 20 26 37 18 27 37 DN15 DN10 DN15 20589
22 x 22 x 12mm 40 22 32 19 45 12 20 24 40 22 32 40 DN20 DN10 DN20 20590
18 x 18 x 15mm 37 18 27 17 46 15 23 29 37 18 27 17 DN15 DN10 DN15 20258
22 x 22 x 15mm 40 22 32 19 48 15 23 27 40 22 32 19 DN20 DN20 DN20 20260
22 x 22 x 18mm 40 22 32 19 48 18 27 27 40 22 32 19 DN20 DN20 DN20 20261
28 x 28 x 15mm 45 28 38 22 51 15 23 31 45 28 38 22 DN25 DN12 DN25 20262
28 x 28 x 18mm 45 28 38 22 51 18 27 31 45 28 38 22 DN25 DN15 DN25 20263
28 x 28 x 22mm 45 28 38 22 52 22 32 31 45 28 38 22 DN25 DN20 DN25 20264
35 x 35 x 15mm 52 35 45 26 54 15 23 34 52 35 45 26 DN32 DN12 DN32 20265
35 x 35 x 18mm 52 35 45 26 54 18 27 34 52 35 45 26 DN32 DN15 DN32 20266
35 x 35 x 22mm 52 35 45 26 55 22 32 34 52 35 45 26 DN32 DN20 DN32 20267
35 x 35 x 28mm 52 35 45 26 57 28 38 34 52 35 45 26 DN32 DN25 DN32 20268
42 x 42 x 22mm 60 42 54 30 58 22 32 37 60 42 54 30 DN40 DN20 DN40 20269
42 x 42 x 28mm 60 42 54 30 60 28 38 37 60 42 54 30 DN40 DN25 DN40 20270
42 x 42 x 35mm 60 42 54 30 63 35 45 37 60 42 54 30 DN40 DN32 DN40 20271
54 x 54 x 22mm 71 54 65 36 64 22 32 43 71 54 65 36 DN50 DN20 DN50 20272
54 x 54 x 28mm 71 54 65 36 66 28 38 43 71 54 65 36 DN50 DN25 DN50 20273
54 x 54 x 35mm 71 54 65 36 69 35 45 43 71 54 65 36 DN50 DN32 DN50 20274
54 x 54 x 42mm 71 54 65 36 73 42 54 43 71 54 65 36 DN50 DN40 DN50 20275
66.7 x 66.7 x 28mm 99 67 83 49 70 28 38 47 99 67 83 49 DN65 DN25 DN65 20677
66.7 x 66.7 x 35mm 99 67 83 49 74 35 45 48 99 67 83 49 DN65 DN32 DN65 20678
66.7 x 66.7 x 42mm 99 67 83 49 80 42 54 50 99 67 83 49 DN65 DN40 DN65 20679
66.7 x 66.7 x 54mm 99 67 830 49 83 54 65 48 99 67 83 49 DN65 DN50 DN65 20680
76.1 x 76.1 x 22mm 115 76 95 60 68 22 32 47 115 76 95 60 DN65 DN20 DN65 20686
76.1 x 76.1 x 28mm 115 76 95 60 85 28 38 62 115 76 95 60 DN65 DN25 DN65 20687

60
