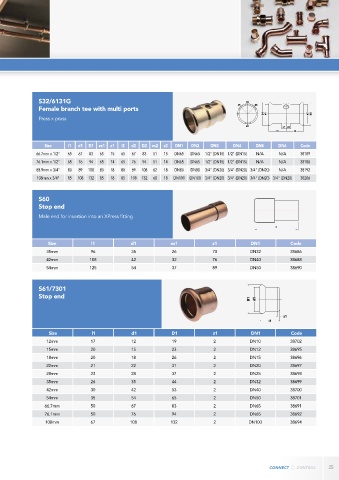

Page 25 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

S32/6131G
Female branch tee with multi ports
Press x press

Size l1 d1 D1 es1 z1 l2 d2 D2 es2 z2 DN1 DN2 DN3 DN4 DN5 DN6 Code
66.7mm x 1/2" 65 67 83 65 15 65 67 83 51 15 DN65 DN65 1/2" (DN15) 1/2" (DN15) N/A N/A 38189
76.1mm x 1/2" 65 76 94 65 14 65 76 94 51 14 DN65 DN65 1/2" (DN15) 1/2" (DN15) N/A N/A 38188
88.9mm x 3/4" 80 89 108 80 18 80 89 108 62 18 DN80 DN80 3/4" (DN20) 3/4" (DN20) 3/4" (DN20) N/A 38192
108mm x 3/4" 85 108 132 85 18 85 108 132 68 18 DN100 DN100 3/4" (DN20) 3/4" (DN20) 3/4" (DN20) 3/4" (DN20) 38206

S60
Stop end

Male end for insertion into an XPress fitting
a

Size l1 d1 es1 z1 DN1 Code
35mm 96 35 26 70 DN32 38686
42mm 108 42 32 76 DN40 38688
54mm 125 54 37 89 DN50 38690

S61/7301
Stop end

Size l1 d1 D1 z1 DN1 Code
12mm 17 12 19 2 DN10 38702
15mm 20 15 23 2 DN12 38695
18mm 20 18 26 2 DN15 38696
22mm 21 22 31 2 DN20 38697
28mm 23 28 37 2 DN25 38698
35mm 26 35 44 2 DN32 38699
42mm 30 42 53 2 DN40 38700
54mm 35 54 65 2 DN50 38701
66.7mm 50 67 83 2 DN65 38691
76.1mm 50 76 94 2 DN65 38692
108mm 67 108 132 2 DN100 38694

25
