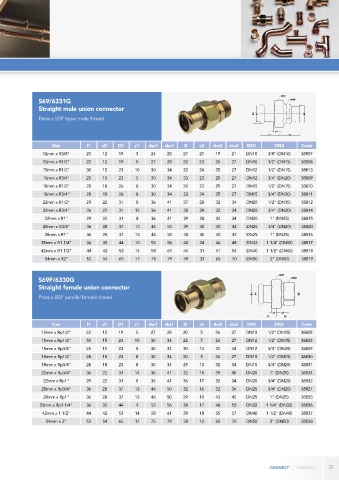

Page 27 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

S69/6331G
Straight male union connector
Press x BSP taper male thread

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x R3/8" 21 12 19 3 24 25 27 21 19 21 DN10 3/8" (DN10) 38807
12mm x R1/2" 22 12 19 5 27 28 32 23 25 27 DN10 1/2" (DN15) 38808
15mm x R1/2" 30 15 23 10 30 34 32 24 25 27 DN12 1/2" (DN15) 38813
15mm x R3/4" 25 15 23 5 30 34 33 23 25 27 DN12 3/4" (DN20) 38809
18mm x R1/2" 28 18 26 8 30 34 31 23 25 27 DN15 1/2" (DN15) 38810
18mm x R3/4" 28 18 26 8 30 34 33 24 25 27 DN15 3/4" (DN20) 38811
22mm x R1/2" 29 22 31 8 36 41 37 28 32 34 DN20 1/2" (DN15) 38812
22mm x R3/4" 36 22 31 15 36 41 38 28 32 34 DN20 3/4" (DN20) 38814
22mm x R1" 29 22 31 8 36 41 39 28 32 34 DN20 1" (DN25) 38815
28mm x R3/4" 36 28 37 13 46 50 39 30 40 42 DN25 3/4" (DN20) 38820
28mm x R1" 36 28 37 13 46 50 40 30 40 42 DN25 1" (DN25) 38816
35mm x R1 1/4" 36 35 44 10 52 56 43 24 46 48 DN32 1 1/4" (DN32) 38817
42mm x R1 1/2" 44 42 53 14 58 61 44 31 51 54 DN40 1 1/2" (DN40) 38818
54mm x R2" 52 54 65 17 75 79 49 33 65 70 DN50 2" (DN50) 38819

S69F/6330G
Straight female union connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x Rp1/2" 22 12 19 5 27 28 20 5 26 27 DN10 1/2" (DN15) 38828
15mm x Rp1/2" 30 15 23 10 30 34 22 7 26 27 DN12 1/2" (DN15) 38833
15mm x Rp3/4" 25 15 23 5 30 34 30 13 32 34 DN12 3/4" (DN20) 38829
18mm x Rp1/2" 28 18 23 8 30 34 20 5 26 27 DN15 1/2" (DN15) 38830
18mm x Rp3/4" 28 18 23 8 30 34 29 13 32 34 DN15 3/4" (DN20) 38831
22mm x Rp3/4" 36 22 31 14 36 41 32 15 39 40 DN20 1" (DN25) 38834
22mm x Rp1" 29 22 31 8 36 41 36 17 32 34 DN20 3/4" (DN20) 38832
28mm x Rp3/4" 36 28 37 13 46 50 32 16 32 34 DN25 3/4" (DN20) 38827
28mm x Rp1" 36 28 37 13 46 50 29 10 43 45 DN25 1" (DN25) 38835
35mm x Rp1 1/4" 36 35 44 9 52 56 38 17 48 50 DN32 1 1/4" (DN32) 38836
42mm x 1 1/2" 44 42 53 14 58 61 39 18 55 57 DN40 1 1/2" (DN40) 38837
54mm x 2" 52 54 65 17 75 79 38 12 65 70 DN50 2" (DN50) 38838

27
