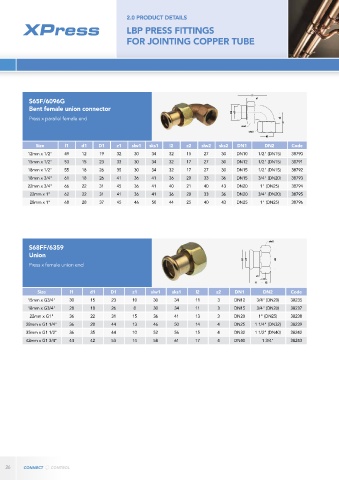

Page 26 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP PRESS FITTINGS
FOR JOINTING COPPER TUBE

S65F/6096G
Bent female union connector
Press x parallel female end

Size l1 d1 D1 z1 slw1 sks1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x 1/2" 49 12 19 32 30 34 32 15 27 30 DN10 1/2" (DN15) 38790
15mm x 1/2" 53 15 23 33 30 34 32 17 27 30 DN12 1/2" (DN15) 38791
18mm x 1/2" 55 18 26 35 30 34 32 17 27 30 DN15 1/2" (DN15) 38792
18mm x 3/4" 61 18 26 41 36 41 36 20 33 36 DN15 3/4" (DN20) 38793
22mm x 3/4" 66 22 31 45 36 41 40 21 40 43 DN20 1" (DN25) 38794
22mm x 1" 62 22 31 41 36 41 36 20 33 36 DN20 3/4" (DN20) 38795
28mm x 1" 68 28 37 45 46 50 44 25 40 43 DN25 1" (DN25) 38796

S68FF/6359
Union
Press x female union end

Size l1 d1 D1 z1 slw1 sks1 l2 z2 DN1 DN2 Code
15mm x G3/4" 30 15 23 10 30 34 11 3 DN12 3/4" (DN20) 38235
18mm x G3/4" 28 18 26 8 30 34 11 3 DN15 3/4" (DN20) 38237
22mm x G1" 36 22 31 15 36 41 13 3 DN20 1" (DN25) 38238
28mm x G1 1/4" 36 28 44 13 46 50 14 4 DN25 1 1/4" (DN32) 38239
35mm x G1 1/2" 36 35 44 10 52 56 15 4 DN32 1 1/2" (DN40) 38242
42mm x G1 3/4" 44 42 53 14 58 61 17 4 DN40 1 3/4" 38243
