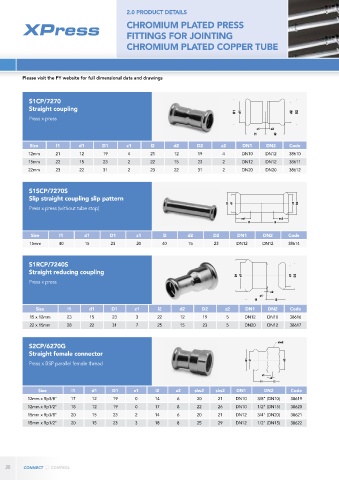

Page 28 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS
CHROMIUM PLATED PRESS

FITTINGS FOR JOINTING
CHROMIUM PLATED COPPER TUBE

Please visit the PY website for full dimensional data and drawings

S1CP/7270
Straight coupling
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 21 12 19 4 21 12 19 4 DN10 DN12 38610
15mm 22 15 23 2 22 15 23 2 DN12 DN12 38611
22mm 23 22 31 2 23 22 31 2 DN20 DN20 38612

S1SCP/7270S
Slip straight coupling slip pattern
Press x press (without tube stop)

Size l1 d1 D1 z1 l2 d2 D2 DN1 DN2 Code
15mm 40 15 23 20 40 15 23 DN12 DN12 38614

S1RCP/7240S
Straight reducing coupling
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
15 x 12mm 23 15 23 3 22 12 19 5 DN12 DN10 38616
22 x 15mm 28 22 31 7 25 15 23 5 DN20 DN12 38617

S2CP/6270G
Straight female connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x Rp3/8" 17 12 19 0 14 6 20 21 DN10 3/8" (DN10) 38619
12mm x Rp1/2" 18 12 19 0 17 8 22 26 DN10 1/2" (DN15) 38620
15mm x Rp3/8" 20 15 23 2 14 6 20 21 DN12 3/4" (DN20) 38621
15mm x Rp1/2" 20 15 23 3 18 8 25 29 DN12 1/2" (DN15) 38622
