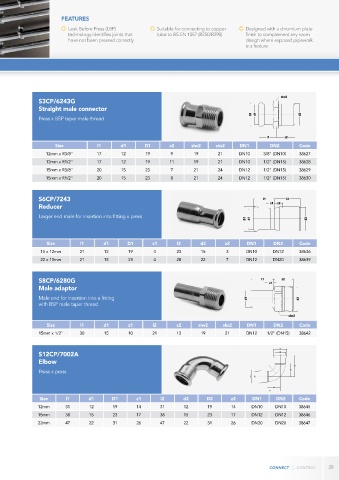

Page 29 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

FEATURES

Leak Before Press (LBP) Suitable for connecting to copper Designed with a chromium plate
technology identifies joints that tube to BS EN 1057 (R250/R290) finish to complement any room
have not been pressed correctly design where exposed pipework
is a feature

S3CP/6243G
Straight male connector
Press x BSP taper male thread

Size l1 d1 D1 z2 slw2 sks2 DN1 DN2 Code
12mm x R3/8" 17 12 19 9 19 21 DN10 3/8" (DN10) 38627
12mm x R1/2" 17 12 19 11 19 21 DN10 1/2" (DN15) 38628
15mm x R3/8" 20 15 23 7 21 24 DN12 1/2" (DN15) 38629
15mm x R1/2" 20 15 23 8 21 24 DN12 1/2" (DN15) 38630

S6CP/7243
Reducer

Larger end male for insertion into fitting x press

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15 x 12mm 21 12 19 4 23 15 3 DN10 DN12 38636
22 x 15mm 21 15 23 4 28 22 7 DN12 DN20 38639

S8CP/6280G
Male adaptor

Male end for insertion into a fitting
with BSP male taper thread

Size l1 d1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
15mm x 1/2" 30 15 10 21 12 19 21 DN12 1/2" (DN15) 38642

S12CP/7002A
Elbow

Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 31 12 19 14 31 12 19 14 DN10 DN10 38645
15mm 38 15 23 17 38 15 23 17 DN12 DN12 38646
22mm 47 22 31 26 47 22 31 26 DN20 DN20 38647

29
