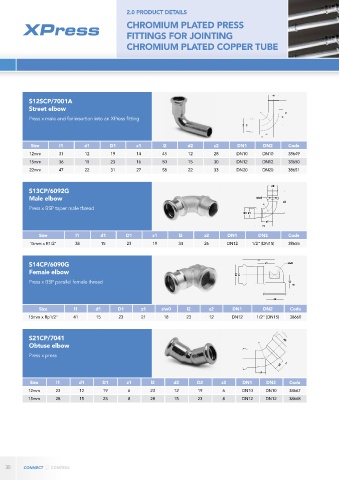

2.0 PRODUCT DETAILS
CHROMIUM PLATED PRESS
FITTINGS FOR JOINTING
CHROMIUM PLATED COPPER TUBE
S12SCP/7001A
Street elbow
Press x male end for insertion into an XPress fitting
Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
12mm 31 12 19 14 45 12 28 DN10 DN10 38649
15mm 36 15 23 16 50 15 30 DN12 DN12 38650
22mm 47 22 31 27 58 22 33 DN20 DN20 38651
S13CP/6092G
Male elbow
Press x BSP taper male thread
Size l1 d1 D1 z1 l2 z2 DN1 DN2 Code
15mm x R1/2" 38 15 23 19 34 26 DN12 1/2" (DN15) 38655
S14CP/6090G
Female elbow
Press x BSP parallel female thread
Size l1 d1 D1 z1 slw0 l2 z2 DN1 DN2 Code
15mm x Rp1/2" 41 15 23 21 18 23 12 DN12 1/2" (DN15) 38660
S21CP/7041
Obtuse elbow
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 23 12 19 6 23 12 19 6 DN10 DN10 38667
15mm 28 15 23 8 28 15 23 8 DN12 DN12 38668
