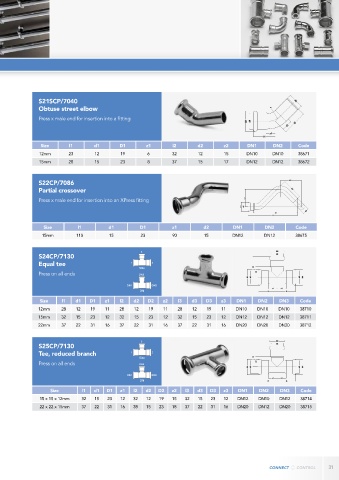

Page 31 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 31
S21SCP/7040
Obtuse street elbow
Press x male end for insertion into a fitting
Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
12mm 23 12 19 6 32 12 15 DN10 DN10 38671
15mm 28 15 23 8 37 15 17 DN12 DN12 38672
S22CP/7086
Partial crossover
Press x male end for insertion into an XPress fitting
Size l1 d1 D1 z1 d2 DN1 DN2 Code
15mm 110 15 23 90 15 DN12 DN12 38675
3
S24CP/7130
Equal tee 1 2
Size
Press on all ends DN2
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
12mm 28 12 19 11 28 12 19 11 28 12 19 11 DN10 DN10 DN10 38710
15mm 32 15 23 12 32 15 23 12 32 15 23 12 DN12 DN12 DN12 38711
22mm 37 22 31 16 37 22 31 16 37 22 31 16 DN20 DN20 DN20 38712
3
S25CP/7130
Tee, reduced branch 1 2
Size
Press on all ends DN2
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 15 x 12mm 32 15 23 12 32 12 19 15 32 15 23 12 DN12 DN10 DN12 38714
22 x 22 x 15mm 37 22 31 16 38 15 23 18 37 22 31 16 DN20 DN12 DN20 38715
31
