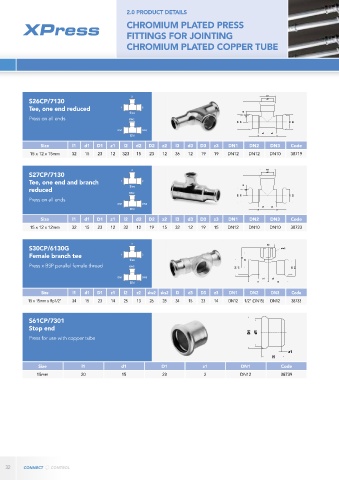

Page 32 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS
CHROMIUM PLATED PRESS

FITTINGS FOR JOINTING
CHROMIUM PLATED COPPER TUBE

3
S26CP/7130
Tee, one end reduced 1 2
Size
Press on all ends DN2

DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 12 x 15mm 32 15 23 12 323 15 23 12 36 12 19 19 DN12 DN12 DN10 38719

3
S27CP/7130
Tee, one end and branch 1 2
reduced Size
DN2
Press on all ends
DN1 DN3
DN
Size l1 d1 D1 z1 l2 d2 D2 z2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 12 x 12mm 32 15 23 12 32 12 19 15 32 12 19 15 DN12 DN10 DN10 38723

3
S30CP/6130G
Female branch tee 1 2
Size
Press x BSP parallel female thread DN2
DN1 DN3
DN
Size l1 d1 D1 z1 l2 z2 slw2 sks2 l3 d3 D3 z3 DN1 DN2 DN3 Code
15 x 15mm x Rp1/2" 34 15 23 14 25 13 26 28 34 15 23 14 DN12 1/2" (DN15) DN12 38733

S61CP/7301
Stop end

Press for use with copper tube

Size l1 d1 D1 z1 DN1 Code
15mm 20 15 23 2 DN12 38739
