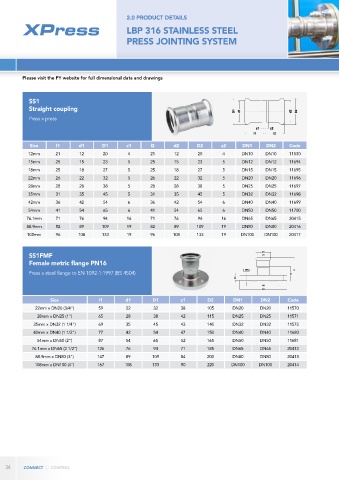

Page 34 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS
P. 34
2.0 PRODUCT DETAILS
LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM
Please visit the PY website for full dimensional data and drawings
SS1
Straight coupling
Press x press
Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 21 12 20 4 21 12 20 4 DN10 DN10 11530
15mm 25 15 23 5 25 15 23 5 DN12 DN12 11694
18mm 25 18 27 5 25 18 27 5 DN15 DN15 11695
22mm 26 22 32 5 26 22 32 5 DN20 DN20 11696
28mm 28 28 38 5 28 28 38 5 DN25 DN25 11697
35mm 31 35 45 5 31 35 45 5 DN32 DN32 11698
42mm 36 42 54 6 36 42 54 6 DN40 DN40 11699
54mm 41 54 65 6 41 54 65 6 DN50 DN50 11700
76.1mm 71 76 94 16 71 76 94 16 DN65 DN65 20415
88.9mm 82 89 109 19 82 89 109 19 DN80 DN80 20416
108mm 96 108 133 19 96 108 133 19 DN100 DN100 20417
SS1FMF
Female metric flange PN16
Press x steel flange to EN 1092-1:1997 (BS 4504)
Size l1 d1 D1 z1 D2 DN1 DN2 Code
22mm x DN20 (3/4") 59 22 32 38 105 DN20 DN20 11570
28mm x DN25 (1") 65 28 38 42 115 DN25 DN25 11571
35mm x DN32 (1 1/4") 69 35 45 43 140 DN32 DN32 11572
42mm x DN40 (1 1/2") 77 42 54 47 150 DN40 DN40 11680
54mm x DN50 (2") 87 54 65 52 165 DN50 DN50 11681
76.1mm x DN65 (2 1/2") 126 76 94 71 185 DN65 DN65 20412
88.9mm x DN80 (3") 147 89 109 84 200 DN80 DN80 20413
108mm x DN100 (4") 167 108 133 90 220 DN100 DN100 20414
