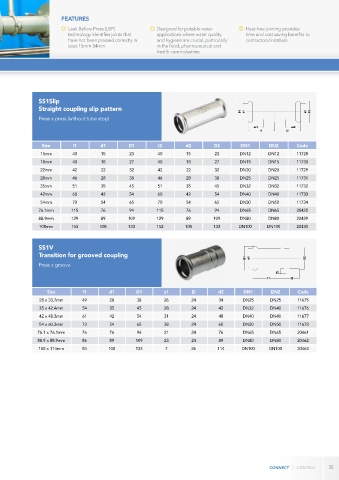

Page 35 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

FEATURES

Leak Before Press (LBP) Designed for potable water Heat-free jointing provides
technology identifies joints that applications where water quality time and cost saving benefits to
have not been pressed correctly in and hygiene are crucial, particularly contractors/installers
sizes 15mm-54mm in the food, pharmaceutical and
health care industries

SS1Slip
Straight coupling slip pattern
Press x press (without tube stop)

Size l1 d1 D1 l2 d2 D2 DN1 DN2 Code
15mm 40 15 23 40 15 23 DN12 DN12 11728
18mm 40 18 27 40 18 27 DN15 DN15 11730
22mm 42 22 32 42 22 32 DN20 DN20 11729
28mm 46 28 38 46 28 38 DN25 DN25 11731
35mm 51 35 45 51 35 45 DN32 DN32 11732
42mm 60 42 54 60 42 54 DN40 DN40 11733
54mm 70 54 65 70 54 65 DN50 DN50 11734
76.1mm 115 76 94 115 76 94 DN65 DN65 20428
88.9mm 129 89 109 129 89 109 DN80 DN80 20429
108mm 153 108 133 152 108 133 DN100 DN100 20430

SS1V
Transition for grooved coupling
Press x groove

Size l1 d1 D1 z1 l2 d2 DN1 DN2 Code
28 x 33.7mm 49 28 38 26 24 34 DN25 DN25 11675
35 x 42.4mm 54 35 45 28 24 42 DN32 DN40 11676
42 x 48.3mm 61 42 54 31 24 48 DN40 DN40 11677
54 x 60.3mm 73 54 65 38 24 60 DN50 DN50 11678
76.1 x 76.1mm 76 76 94 21 24 76 DN65 DN65 20461
88.9 x 88.9mm 86 89 109 23 24 89 DN80 DN80 20462
108 x 114mm 84 108 133 7 26 114 DN100 DN100 20463

35
