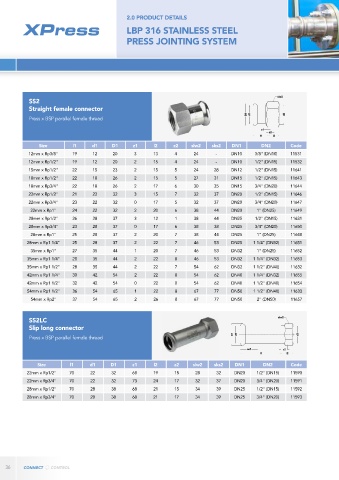

Page 36 - PRESS-FIT SYSTEMS FOR DIVERSE APPLICATIONS

2.0 PRODUCT DETAILS

LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM

SS2
Straight female connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
12mm x Rp3/8" 19 12 20 3 13 4 24 - DN10 3/8" (DN10) 11531
12mm x Rp1/2" 19 12 20 2 15 4 24 - DN10 1/2" (DN15) 11532
15mm x Rp1/2" 22 15 23 2 15 5 24 28 DN12 1/2" (DN15) 11641
18mm x Rp1/2" 22 18 26 2 15 5 27 31 DN15 1/2" (DN15) 11643
18mm x Rp3/4" 22 18 26 2 17 6 30 35 DN15 3/4" (DN20) 11644
22mm x Rp1/2" 21 22 32 3 15 7 32 37 DN20 1/2" (DN15) 11646
22mm x Rp3/4" 23 22 32 0 17 5 32 37 DN20 3/4" (DN20) 11647
22mm x Rp1" 24 22 32 2 20 6 38 44 DN20 1" (DN25) 11649
28mm x Rp1/2" 26 28 37 3 12 1 38 44 DN25 1/2" (DN15) 11631
28mm x Rp3/4" 23 28 37 0 17 6 38 38 DN25 3/4" (DN20) 11650
28mm x Rp1" 25 28 37 2 20 7 38 44 DN25 1" (DN25) 11648
28mm x Rp1 1/4" 25 28 37 2 22 7 46 53 DN25 1 1/4" (DN32) 11651
35mm x Rp1" 27 35 44 1 20 7 46 53 DN32 1" (DN25) 11652
35mm x Rp1 1/4" 28 35 44 2 22 8 46 53 DN32 1 1/4" (DN32) 11653
35mm x Rp1 1/2" 28 35 44 2 22 7 54 62 DN32 1 1/2" (DN40) 11632
42mm x Rp1 1/4" 30 42 54 2 22 8 54 62 DN40 1 1/4" (DN32) 11655
42mm x Rp1 1/2" 32 42 54 0 22 0 54 62 DN40 1 1/2" (DN40) 11654
54mm x Rp1 1/2" 36 54 65 1 22 8 67 77 DN50 1 1/2" (DN40) 11633
54mm x Rp2" 37 54 65 2 26 8 67 77 DN50 2" (DN50) 11657

SS2LC
Slip long connector
Press x BSP parallel female thread

Size l1 d1 D1 z1 l2 z2 slw2 sks2 DN1 DN2 Code
22mm x Rp1/2" 70 22 32 68 19 15 28 32 DN20 1/2" (DN15) 11590
22mm x Rp3/4" 70 22 32 73 24 17 32 37 DN20 3/4" (DN20) 11591
28mm x Rp1/2" 70 28 38 68 21 15 34 39 DN25 1/2" (DN15) 11592
28mm x Rp3/4" 70 28 38 68 21 17 34 39 DN25 3/4" (DN20) 11593

36
