P. 37

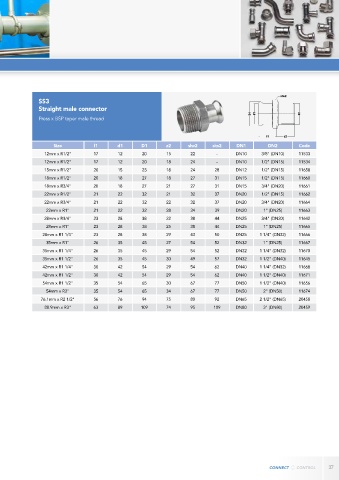

SS3
Straight male connector
Press x BSP taper male thread
Size l1 d1 D1 z2 slw2 sks2 DN1 DN2 Code
12mm x R1/2" 17 12 20 15 22 - DN10 3/8" (DN10) 11533
12mm x R1/2" 17 12 20 18 24 - DN10 1/2" (DN15) 11534
15mm x R1/2" 20 15 23 18 24 28 DN12 1/2" (DN15) 11658
18mm x R1/2" 20 18 27 18 27 31 DN15 1/2" (DN15) 11660
18mm x R3/4" 20 18 27 21 27 31 DN15 3/4" (DN20) 11661
22mm x R1/2" 21 22 32 21 32 37 DN20 1/2" (DN15) 11662
22mm x R3/4" 21 22 32 22 32 37 DN20 3/4" (DN20) 11664
22mm x R1" 21 22 32 28 34 39 DN20 1" (DN25) 11663
28mm x R3/4" 23 28 38 22 38 44 DN25 3/4" (DN20) 11642
28mm x R1" 23 28 38 25 38 44 DN25 1" (DN25) 11665
28mm x R1 1/4" 23 28 38 29 43 50 DN25 1 1/4" (DN32) 11666
35mm x R1" 26 35 45 27 54 52 DN32 1" (DN25) 11667
35mm x R1 1/4" 26 35 45 29 54 52 DN32 1 1/4" (DN32) 11670
35mm x R1 1/2" 26 35 45 30 49 57 DN32 1 1/2" (DN40) 11645
42mm x R1 1/4" 30 42 54 29 54 62 DN40 1 1/4" (DN32) 11668
42mm x R1 1/2" 30 42 54 29 54 62 DN40 1 1/2" (DN40) 11671
54mm x R1 1/2" 35 54 65 30 67 77 DN50 1 1/2" (DN40) 11656
54mm x R2" 35 54 65 34 67 77 DN50 2" (DN50) 11674
76.1mm x R2 1/2" 56 76 94 75 80 92 DN65 2 1/2" (DN65) 20458
88.9mm x R3" 63 89 109 74 95 109 DN80 3" (DN80) 20459
37
