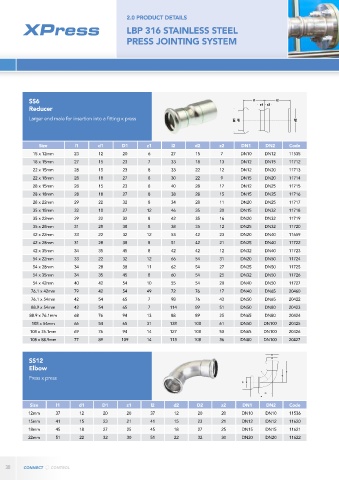

2.0 PRODUCT DETAILS

LBP 316 STAINLESS STEEL
PRESS JOINTING SYSTEM

SS6
Reducer
Larger end male for insertion into a fitting x press

Size l1 d1 D1 z1 l2 d2 z2 DN1 DN2 Code
15 x 12mm 23 12 20 6 27 15 7 DN10 DN12 11535
18 x 15mm 27 15 23 7 33 18 13 DN12 DN15 11712
22 x 15mm 28 15 23 8 33 22 12 DN12 DN20 11713
22 x 18mm 28 18 27 8 30 22 9 DN15 DN20 11714
28 x 15mm 28 15 23 8 40 28 17 DN12 DN25 11715
28 x 18mm 28 18 27 8 38 28 15 DN15 DN25 11716
28 x 22mm 29 22 32 8 34 28 11 DN20 DN25 11717
35 x 18mm 32 18 27 12 46 35 20 DN15 DN32 11718
35 x 22mm 29 22 32 8 42 35 16 DN20 DN32 11719
35 x 28mm 31 28 38 8 38 35 12 DN25 DN32 11720
42 x 22mm 33 22 32 12 53 42 23 DN20 DN40 11659
42 x 28mm 31 28 38 8 51 42 21 DN25 DN40 11722
42 x 35mm 34 35 45 8 42 42 12 DN32 DN40 11723
54 x 22mm 33 22 32 12 66 54 31 DN20 DN50 11724
54 x 28mm 34 28 38 11 62 54 27 DN25 DN50 11725
54 x 35mm 34 35 45 8 60 54 25 DN32 DN50 11726
54 x 42mm 40 42 54 10 55 54 20 DN40 DN50 11727
76.1 x 42mm 79 42 54 49 72 76 17 DN40 DN65 20460
76.1 x 54mm 42 54 65 7 98 76 43 DN50 DN65 20422
88.9 x 54mm 42 54 65 7 114 89 51 DN50 DN80 20423
88.9 x 76.1mm 68 76 94 13 88 89 25 DN65 DN80 20424
108 x 54mm 66 54 65 31 138 108 61 DN50 DN100 20425
108 x 76.1mm 69 76 94 14 127 108 50 DN65 DN100 20426
108 x 88.9mm 77 89 109 14 113 108 36 DN80 DN100 20427

SS12
Elbow
Press x press

Size l1 d1 D1 z1 l2 d2 D2 z2 DN1 DN2 Code
12mm 37 12 20 20 37 12 20 20 DN10 DN10 11536
15mm 41 15 23 21 41 15 23 21 DN12 DN12 11620
18mm 45 18 27 25 45 18 27 25 DN15 DN15 11621
22mm 51 22 32 30 51 22 32 30 DN20 DN20 11622
